Hi Gregg,

finally some feedback.. Thanks for passing me on your performance results. It’s quite obvious that your application leads to heavy I/O.

i'd like to get a deeper understanding of how your file-io is organized and what your caching scheme looks like. What sort of file-io caching mechanism is in place now? What are your plans? Is there anything we can do to help that along?

It seems that your colleagues already had a closer look on the relevant classes, so they may have a first guess what’s going on. We decided to mainly rely on the standard OS file system caching, as this proved to work out pretty well in most use cases. However, there is a tiny internal buffer of 16 x 4KB blocks that caches the most accessed blocks, which is a little bit faster than OS caching, and which remembers the most frequently accessed blocks.

While I still know too less about your particular use case, I assume that it will be difficult to solve problems by introducing smarter caching techniques. Instead, I would be interested how the queries/access patterns look like that you are processing, as I haven’t found any hints to that in the benchmark results. Do you e.g. use index structures? Have you checked out the query optimizations returned in the InfoView or via -V on command line?

Regarding your PS: thanks for your offer to support us financially. Various features of BaseX have indeed been sponsored by our customers, so this is indeed something we appreciate. As we are currently pretty busy, and as our experienced core team is still very small (…we’re working on that…), I’m afraid we don’t have enough resources to really focus on other projects, but this may get better in a few weeks. Would you thus mind if we move our Skype conversation to approx. beginning of March? By then, I should know better what’s possible to do for us. If you have some concrete ideas what should happen in our code, or if you even have some patches that yield much better details in your scenario, your feedback is always welcome.

All the best, Christian ___________________________

I’ve run the performance tests with 7.5.1 servers using DB Locking and with varying levels of parallel reads. Unfortunately there is no performance gain. While the socket.io blocking is gone the disk io blocking right after impacts performance just as much. Results are:

previous (8 reads)

32 reads

64 reads

192 reads

first

last

first

last

first

Last

first

last

UAT 10 by 1000

8.76

14.16

8.79

12.99

9.12

12.73

8.4

12.9

Running with 192 reads and causing 10 by 10 by 1000, 10 users by 10 concurrent searches on 300ms delay each, by an affiliate with 1000. (above is 10 users by 1 concurrent search by an affiliate with 1000)

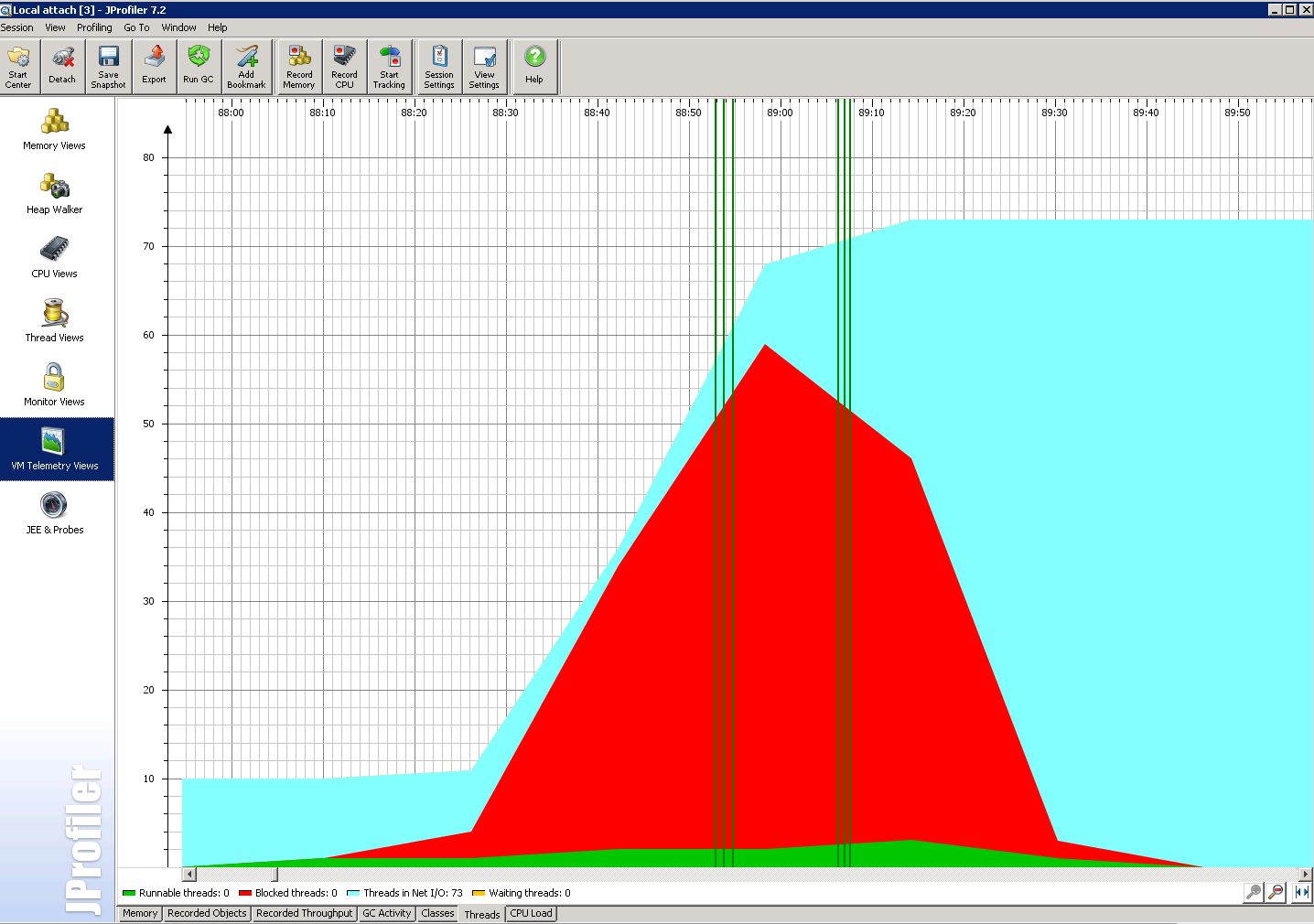

I’ve attached some screenshots showing what the basex jar is doing when the tests run. It seems only ~1-2 threads can read from disk at any given time. The red sections are all 3 common issues, TableDiskAccess.read1, TableDiskAccess.read2, DataAccess.readToken, the dumps are attached as well.

Looking at the source for basex TableDiskAccess and DataAccess there is no file system caching. Every test is doing a buffer read on the exact same database even though it does not change from a write. So instead of basex realizing this, it just blindly goes to the disk each time.

We’ll run some tests on a vm backed by ssd to see if that can resolve the disk access. If it can’t, and without any kind of caching logic, this looks to be as far as we can go with basex performance and I’m not sure it will be enough. Even if caching logic existed for read, I’m still concerned that many writes with basex will block it the same way as it doesn’t appear to do any log or page caching as most relational dbs do now to limit disk io impacts. Sharding the dbs across 16 servers would have helped for socket.io but it will not solve physical disk io.

Jason

From: Sasa Ivetic Sent: January-18-13 3:05 PM ...

Hi everyone,

I’ve spent a few hours today writing a simple BaseX test (mimics the BaseXPersistTest in KVDB) in order to analyze performance of different machines we have available to us. Results are interesting, and demonstrate that the test is likely heavily I/O bound on our Production server hosted by Rackforce. I’ve attached two quick graphs I made from the results. “BaseX Test Results Chart.png” is a graph of total runtime based on specified parameters, with Y Axis being measured in ms (lower is better). “BaseX Test Results Chart – Queries Per Second” is a graph of total queries per second (higher is better).

PARALLEL parameter is a BaseX Server setting indicating how many read/write processes can run concurrently

T parameter is the number of client threads used to create read/write requests

QPT parameter is the number of queries each thread runs

Amazon EC2 is the High I/O instance, with 16 cores, and 1TB worth of SSD-backed storage

My laptop is a Core i7 (4 cores w/ HT) with a 7200rpm drive

Beta is our own internal VM

Prod is the Rackforce VM, in their high performance cloud and with the high performance SAN (which we’re pretty sure is SSD backed as well)

For purposes of the above test, 5% of total queries were write queries. On average, each test executed just under 19k read queries and just over 1k write queries (for a total of 20k queries). The test is only a micro-benchmark, but I feel it reflects daily Protunity usage reasonably well.

I will also try to spend some time testing raw I/O throughput (and more importantly) latency with third-party software to get a better grasp of the differences between the various servers.

---

Sasa Ivetic
