It looks like the plot only supports first level attributes and nothing custom then? Basically, I can't have <level1><level2><level3 year="2020" price="234123"/></level2></level3>?

As a feature request, I think it would be very useful to have a drop down to select the database, then a separate drop down to select the X series and a separate value to select the Y series, or xquery functions to generate either of these :)

Regards, Ben

On 1/10/23 13:06, Christian Grün wrote:

Hi Ben,

Your query seems to be based on a different input ("GRCMAPLE-1" is not included in the example XML document), and…

...

CREATE DB bullion-2 /home/bpracht/java/basex-10.4/

…by running this command, you are creating a database with all XML documents found in the given filesystem path (that’s why your database is not empty).

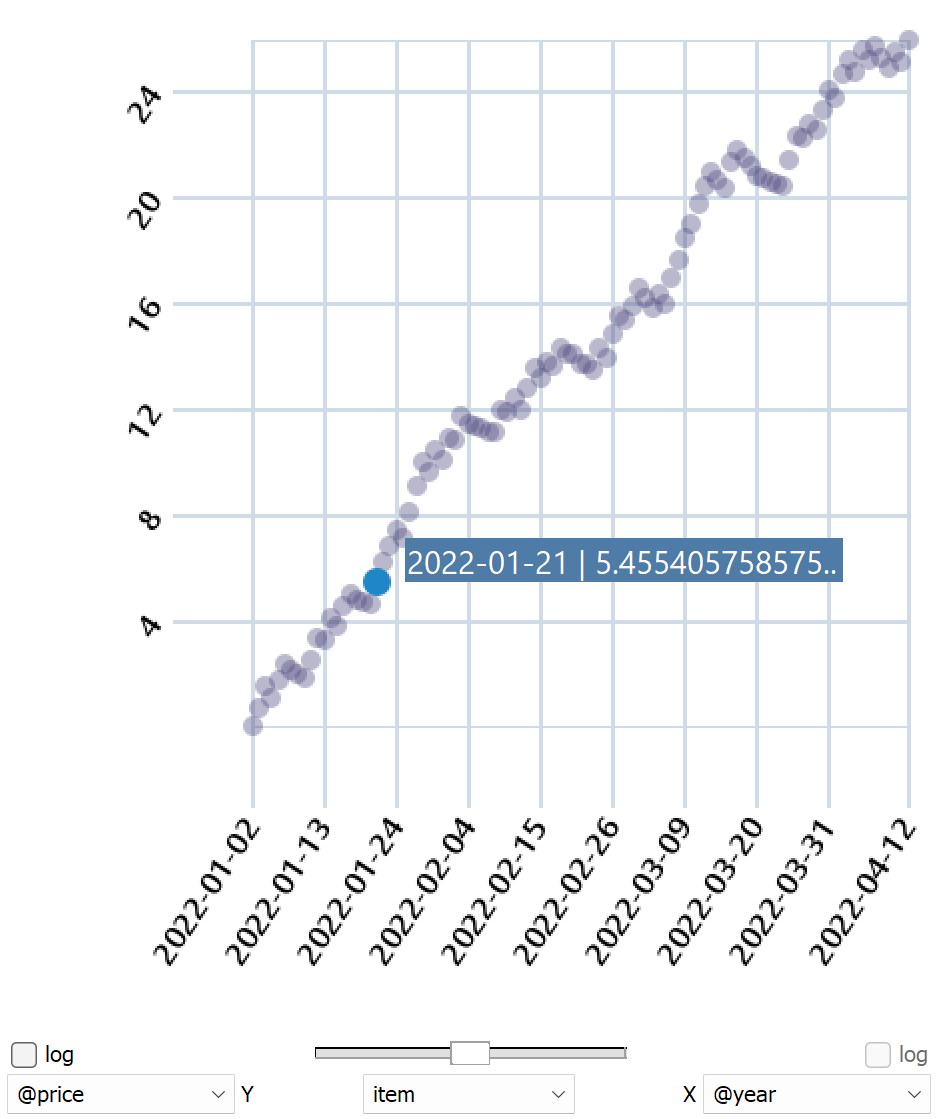

The attached query might give you a clue on how data can be prepared to get price/timestamp data displayed in the Plot visualization. After having run the query, you need to open the generated "test" database and enable the Plot visualization.

Best, Christian

On Tue, Jan 10, 2023 at 5:16 PM Ben Pracht ben.pracht.news@gmail.com wrote:

...

I think any non-stock database would work to show this, but below is the code I was using. This is the part of the dialog I'd like to get working:

https://i.imgur.com/ocGXjlP.png

I apologize for the bad markering, but it shows the drop downs that refer only to items in some other un-selected database.

To recreate:

1. Please create a database. I kept most of the defaults:

CREATE DB bullion-2 /home/bpracht/java/basex-10.4/

2. Add a document:

let $item := <item> <vendor>sdbullion</vendor> <img-url>https://sdbullion.com/media/catalog/product/cache/092a78d23e77560f092c3f80d8...</img-url> <detail-url>https://sdbullion.com/2022-1-oz-canadian-gold-maple-leaf-coin</detail-url> <detail-title>2022 1 oz Gold Maple Leaf Coin BU</detail-title> <schedule skus="GRC22MAPLE-1" timestamp="1672932572402"> <tier quantity="1 - 9" cash-price="1930.26" cc-price="2010.69" paypal-price="2010.69"/> <tier quantity="10 - 19" cash-price="1925.26" cc-price="2005.48" paypal-price="2005.48"/> <tier quantity="20 - 99" cash-price="1920.26" cc-price="2000.27" paypal-price="2000.27"/> <tier quantity="100+" cash-price="1915.26" cc-price="1995.06" paypal-price="1995.06"/> </schedule>

</item> let $add := db:add('bullion-2',$item,"test-item") return $item

3. Test code:

declare function local:get-price-for-quantity($schedule,$price-type,$quantity as xs:integer) { let $matching-tier := for $tier in $schedule/tier let $range := $tier/@quantity/data() let $minimum := number(if (contains($range,'-')) then substring-before($range,'-') else substring-before($range,'+')) let $maximum:= number(if (contains($range,'-')) then substring-after($range,'-') else xs:double("INF")) return if ($quantity >= $minimum and $quantity <= $maximum) then $tier else ()

  return $matching-tier/@*[local-name(.) = $price-type]/data()

};

for $schedule in collection("bullion")/item/schedule let $timestamp := $schedule/@timestamp/data() let $price-type := "cash-price" let $price := local:get-price-for-quantity($schedule,"cash-price",1) order by $timestamp ascending return if ($schedule/@skus/data() = 'GRCMAPLE-1') then ($timestamp,$price) else ()

The test code above should show the timestamp and price of the item. I was going to put the timestamp as the X and the price as the Y, but I can't figure out how.

Bonus concern: For some reason, it didn't create an empty database, but rather had these other documents too:

repo/http-www.functx.com-1.0/cxan.xml repo/http-www.functx.com-1.0/expath-pkg.xml webapp/WEB-INF/jetty.xml webapp/WEB-INF/web.xml etc/factbook.xml etc/w3-catalog.xml

Thanks for your help,

Ben
